電動對夾式蝶閥
Henan Zhongyue Valve Manufacturing Co. Ltd— 閥門系列—

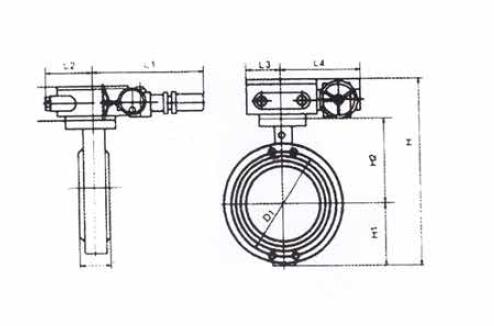

電動對夾式蝶閥
|
規格 DN |
H1 |
H2 |
H3 |
L |
Ф |
0.6MPa |
1.0MPa |
1.6MPa |
|||||||||||
|
D |
D1 |
n-d |
螺栓 |
H |
D |
D1 |
n-d |
螺栓 |
H |
D |
D1 |
n-d |
螺栓 |
||||||
|
100 |
115 |
242 |
80 |
64 |
150 |
210 |
170 |
4-Ф18 |
4-M16 |
482 |
220 |
180 |
8-Ф18 |
8-M16 |
482 |
220 |
180 |
8-Ф18 |
8-M16 |
|
125 |
130 |
245 |
80 |
70 |
150 |
240 |
200 |
8-Ф18 |
8-M16 |
500 |
250 |
210 |
8-Ф18 |
8-M16 |
500 |
250 |
210 |
8-Ф18 |
8-M16 |
|
150 |
145 |
277 |
80 |
76 |
150 |
265 |
225 |
8-Ф18 |
8-M16 |
547 |
285 |
240 |
8-Ф22 |
8-M20 |
547 |
285 |
240 |
8-Ф18 |
8-M16 |
|
200 |
175 |
320 |
95 |
89 |
200 |
320 |
280 |
8-Ф18 |
8-M16 |
653 |
340 |
295 |
8-Ф22 |
8-M20 |
653 |
340 |
295 |
12-Ф22 |
12-M20 |
|
250 |
210 |
350 |
95 |
114 |
200 |
375 |
335 |
12-Ф18 |
12-M16 |
722 |
395 |
350 |
12-Ф22 |
12-M20 |
722 |
405 |
355 |
12-Ф26 |
12-M24 |
|
300 |
240 |
350 |
95 |
114 |
250 |
440 |
395 |
12-Ф22 |
12-M20 |
827 |
445 |
400 |
12-Ф22 |
12-M20 |
827 |
460 |
410 |
12-Ф26 |
12-M24 |
|
350 |
262 |
438 |
95 |
127 |
250 |
490 |
445 |
12-Ф22 |
12-M20 |
885 |
505 |
460 |
16-Ф22 |
16-M20 |
885 |
520 |
470 |
16-Ф26 |
16-M24 |
|
400 |
290 |
480 |
115 |
140 |
320 |
540 |
495 |
16-Ф22 |
12-M20 |
1000 |
565 |
515 |
16-Ф26 |
16-M24 |
1000 |
580 |
525 |
16-Ф30 |
16-M27 |
|
450 |
315 |
505 |
115 |
152 |
320 |
595 |
550 |
16-Ф22 |
16-M20 |
1052 |
615 |
565 |
20-Ф26 |
20-M24 |
1052 |
640 |
585 |
20-Ф30 |
20-M27 |
|
500 |
350 |
540 |
115 |
152 |
320 |
645 |
600 |
20-Ф22 |
20-M20 |
1122 |
670 |
620 |
20-Ф26 |
20-M24 |
1122 |
715 |
650 |
20-Ф33 |
20-M30 |
|
600 |
400 |
640 |
160 |
178 |
500 |
755 |
705 |
20-Ф26 |
20-M24 |
1215 |
780 |
725 |
20-Ф30 |
20-M24 |
1215 |
840 |
770 |
20-Ф36 |
20-M33 |
|
700 |
460 |
720 |
160 |
229 |
500 |
860 |
810 |
24-Ф26 |
24-M24 |
1360 |
895 |
840 |
24-Ф30 |
24-M27 |
1360 |
910 |
840 |
24-Ф36 |
24-M33 |
|
800 |
520 |
770 |
270 |
241 |
500 |
975 |
920 |
24-Ф30 |
24-M27 |
1580 |
1015 |
950 |
24-Ф33 |
24-M30 |
1580 |
1025 |
950 |
24-Ф39 |
24-M36 |
|
900 |
570 |
830 |
270 |
241 |
500 |
1075 |
1020 |
24-Ф30 |
24-M27 |
1670 |
1115 |
1050 |
28-Ф33 |
28-M30 |
1670 |
1125 |
1050 |
28-Ф39 |
28-M36 |
|
1000 |
640 |
900 |
270 |
300 |
500 |
1175 |
1120 |
28-Ф30 |
28-M27 |
1810 |
1230 |
1160 |
28-Ф36 |
28-M33 |
1810 |
1255 |
1170 |
28-Ф42 |
28-M39 |
|
1200 |
771 |
1029 |
285 |
360 |
500 |
1405 |
1340 |
32-Ф33 |
32-M30 |
2085 |
1455 |
1380 |
32-Ф39 |
32-M36 |
2085 |
1485 |
1390 |
32-Ф48 |
32-M42 |
|
1400 |
880 |
1175 |
425 |
390 |
500 |
1630 |
1560 |
36-Ф36 |
36-M33 |
2480 |
1675 |
1590 |
36-Ф42 |
36-M39 |
2480 |
1685 |
1590 |
36-Ф48 |
36-M42 |
|
1600 |
980 |
1260 |
425 |
440 |
500 |
1830 |
1760 |
40-Ф36 |
40-M33 |
2665 |
1915 |
1820 |
40-Ф48 |
40-M42 |
2665 |
1930 |
1820 |
40-Ф56 |
42-M48 |
|
1800 |
1100 |
1380 |
425 |
490 |
500 |
2045 |
1970 |
44-Ф39 |
44-M36 |
2905 |
2115 |
2020 |
44-Ф48 |
44-M42 |
2905 |
2130 |
2020 |
44-Ф56 |
44-M48 |
|
2000 |
1278 |
1525 |
425 |
540 |
500 |
2265 |
2180 |
48-Ф42 |
48-M39 |
3228 |
2325 |
2230 |
48-Ф48 |
48-M42 |
3228 |
2345 |
2230 |
48-Ф60 |
48-M48 |
|
2200 |
1512 |
1519 |
425 |
|
500 |
2475 |
2390 |
52-Ф42 |
52-M39 |
3456 |
2550 |
2440 |
52-Ф56 |
52-M48 |
|
|
|
|
|
|
2400 |
1768 |
1748 |
425 |
|
610 |
2685 |
2600 |
56-Ф42 |
56-M39 |
3941 |
2760 |
2650 |
56-Ф56 |
56-M48 |
|
|
|
|
|
|
2600 |
1868 |
1847 |
565 |
|
610 |
2905 |
2810 |
60-Ф48 |
60-M42 |
4280 |
2960 |
2850 |
60-Ф56 |
60-M48 |
|
|
|
|
|
|
2800 |
1968 |
1946 |
565 |
|
610 |
3115 |
3020 |
64-Ф48 |
64-M42 |
4479 |
3180 |
3070 |
64-Ф56 |
64-M48 |
|
|
|
|
|
|
3000 |
2068 |
2048 |
565 |
|
610 |
3315 |
3220 |
68-Ф48 |
68-M42 |
4681 |
3405 |
3290 |
68-Ф62 |
68-M56 |
|
|
|
|
|
|
注：電動和氣動部分尺寸根據所用電動裝置的廠家的型號而改變。 |
|||||||||||||||||||
